PALO ALTO, Calif., Aug. 3, 2017 /PRNewswire/ -- Lockheed Martin (NYSE: LMT) today revealed the first images from an experimental, ultra-thin optical instrument, showing it could be possible to shrink space telescopes to a sliver of the size of today's systems while maintaining equivalent resolution.
Weighing 90 percent less than a typical telescope, the Segmented Planar Imaging Detector for Electro-Optical Reconnaissance (SPIDER) opens a path for extremely lightweight optical instruments, allowing for more hosted payloads or smaller spacecraft. More broadly, the sensor technology has applications for aircraft and other vehicles—anywhere that depends on small optical sensors. The future could see UAVs with imagers laid flat underneath their wings, and cars could have imaging sensors that are flush against their grills.
The SPIDER project has roots in research funded by the Defense Advanced Research Projects Agency (DARPA). Lockheed Martin independently completed this phase of research at its Advanced Technology Center (ATC).

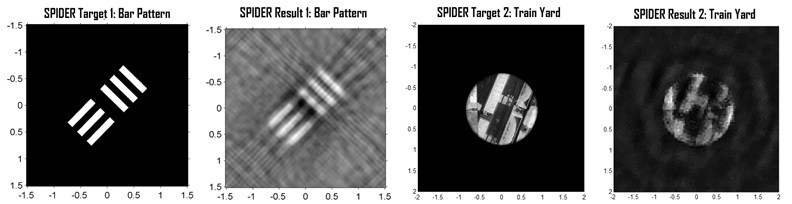

SPIDER’s first results shown here, with targets of two images on the left of each pair and the image reconstructions using SPIDER on the right (in millimeters). The first test used a standard optical test pattern, and the second test used an aerial photo of a train yard. The team continues to increase the system’s resolution from these first, baseline images.
"This is generation-after-next capability we're building from the ground up," said Scott Fouse, ATC vice president. "Our goal is to replicate the same performance of a space telescope in an instrument that is about an inch thick. That's never been done before. We're on our way to make space imaging a low-cost capability so our customers can see more, explore more and learn more."
The system uses tiny lenses to feed optical data divided and recombined in a photonic integrated circuit (PIC), which was originally designed for telecommunications at the University of California, Davis. Using these chips in a different way, Lockheed Martin researchers unlocked new potential for ultra-thin telescopes using a technique called interferometric imaging.
The tests involved a PIC aligned to a series of 30 lenses, each smaller than a millimeter across. An optical system simulated the distance from space to the ground, where scenes were illuminated and rotated. The first image included a standard bar test pattern, and the second image showed the overhead view of a complex rail yard.
The lenses and PIC comprise one section of a full instrument to be assembled in the next project phase. The team plans to increase the resolution and field of view in future phases.
The initial findings from this project were presented today at the Pacific Rim Conference on Lasers and Electro-Optics (CLEO-Pacific Rim) in Singapore.
