July 16, 2014
Auburn, MA –Precision Motion specialist PI (Physik Instrumente) introduces a new 6-axis positioning system with 1000lbs load capacity.

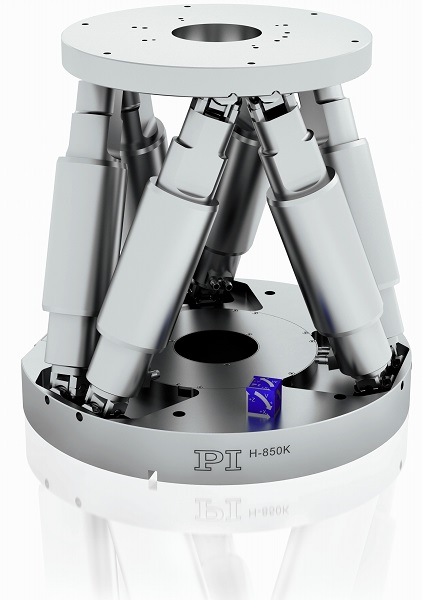

The new H-850KMLD hexapod system provides 1µm minimum incremental motion over a 100mm travel range in XY and 0.5µm in the Z direction. The repeatability in the 3 linear axes is ±1µm, and ±5µrad / 9µrad in the rotary axes.
All PI hexapods are delivered with a special hexapod controller, an extensive software package and are very easy to use and integrate. The dedicated C-887 hexapod multiaxis-vector controller is commanded directly in Cartesian coordinates. The user can specify a random pivot point in space with a single software command, a feature that is critical in automated optical and mechanical alignment applications. LabVIEW and text-based programming languages under Microsoft Windows or Linux are supported by libraries and program examples.
Loads Above 2000 lbs
For even higher loads above 2000lbs. standard H-845 and custom hexapods are available. PI recently installed a new 4500 square ft production and test facility for heavy duty 6-Axis motion systems capable of moving loads of up to 5 metric tons with sub-micrometer precision. A giant swivel and lift platform and interferometers are used to test the hexapod with its load in place under the exact mounting conditions of the customer’s application.
Hexapod Applications:
- Precision manufacturing and automation
- Astronomical telescopes
- Satellite antenna alignment
- Optics alignment
- Medical tumor treatment and surgery
- High energy physics
- Aerospace
- Semiconductor manufacturing
- Photonics components manufacturing
More information on the new high load hexapod 6-axis parallel positioner:
http://www.physikinstrumente.com/en/news/fullnews.php?newsid=181&onl
